South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine

South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine
South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine

تصویر بزرگ :  South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine

جزئیات محصول:
محل منبع: چین
نام تجاری: BEST
گواهی: CE
شماره مدل: YX50
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: USD8000---15000
زمان تحویل: 30 روز کاری
شرایط پرداخت: L/C ، T/T
قابلیت ارائه: 20 مجموعه در ماه

South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine

شرح
نام: دستگاه گل میخ و پیست استیل دو خط دستگاه ساخت و ساز ماشین سفارشی ضخامت مواد: 0.6-1.6mm (235-345Mpa)
شفت: فولاد 45# با کیفیت بالا با عملیات حرارتی. ایجاد سرعت: حدود 20 متر در دقیقه
سیستم کنترل کننده: PLC
برجسته کردن:

PLC control steel profile machine,cold roll forming stud machine,customized stud roll forming machine

,

cold roll forming stud machine

,

customized stud roll forming machine

South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine



South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine 0



Technical specification:



Stud, Track and Channel Roll Forming Machine
No. Item Specification Optional
1 Suitable material Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):0.25-1.2
Yield strength: 250 – 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2 Nominal forming speed(m/min) 10-25 Or according to your requirement
3 Forming station 12
4 Decoiler Manual decoiler Hydraulic decoiler or double head decoiler
5 Main machine motor Sino-German Brand Siemens
6 PLC brand Panasonic Siemens
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers’ materail Steel #45 GCr15
10 Station structure Wall panel station Forged Iron stationOr torri stand structure
11 Punching system No Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 60Hz Or according to your requirement
14 Machine color Industrial blue Or according to your requirement



Main components of stud and track roll forming machine



Decoiler------------------------------------------------1set

Roll Formming Machine ---------------------------1set

Cutting Device----------------------------------------1set

PLC control box--------------------------------------1set

Hydraulic oil pump-----------------------------------1set

Machine Components and Specifications

 Uncoiler

  1. Max.weight: 3TON
  2. I.D of Coil: 450-550mm
  3. Steel Plate and C beam welded
  4. Function: The uncoiler is used to hold and uncoil the coils. This manual uncoil is unpowered. You need to manually adjust the uncoiler mandrel to tension the coil

Feeding and Guiding Device of Stud and Track Machine

  1. Width Range:200-300mm
  2. Feeding Type: Manual feeding
  3. Guiding Type: Manual adjust
  4. Function of Guiding: Avoid the deviation of the material

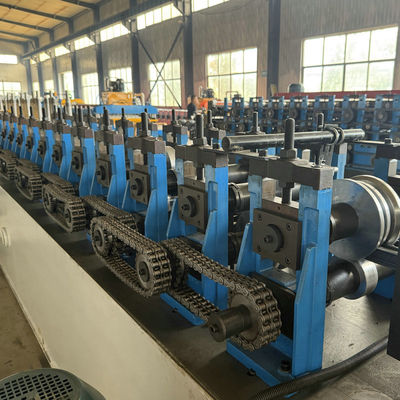

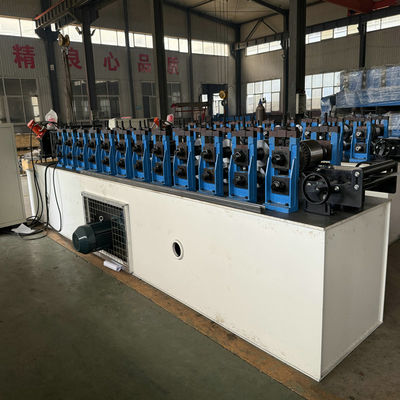

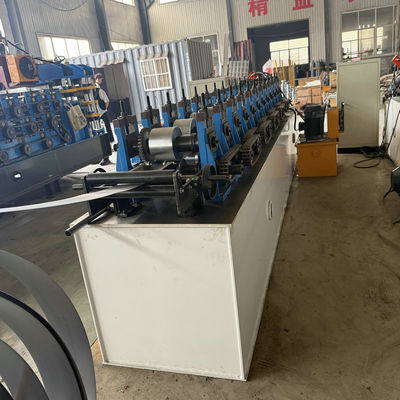

Metal Stud and Track Roll Forming Machine

  1. Machine Structure: The main base use C beam welded, assemble the driven motor inside of the machine, the mill structure use whole plate welded, bottom bearing block assemble in the steel plate directly which is same as Taiwan design
  2. Forming Speed: 12-15m/min
  3. Machine Voltage and Frequency:415V, 50Hz, 3Phase
  4. Material of Rollers: GCR15, CNC processing, HRC58-62, chromed 0.05mm thickness
  5. Forming Steps:18
  6. Material of Shaft: ASTM1045, lathe process and polish the out diameter
  7. Diameter of shaft: 60mm
  8. Material of Spacers: ASTM1045, wall thickness: 8mm, chromed and hardness treatment.
  9. Driven Motor: Chinese Guomao Brand, 5.5KW
  10. Transmission: By gears
  11. Machine Side Wall Panel:18mm

South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine 1

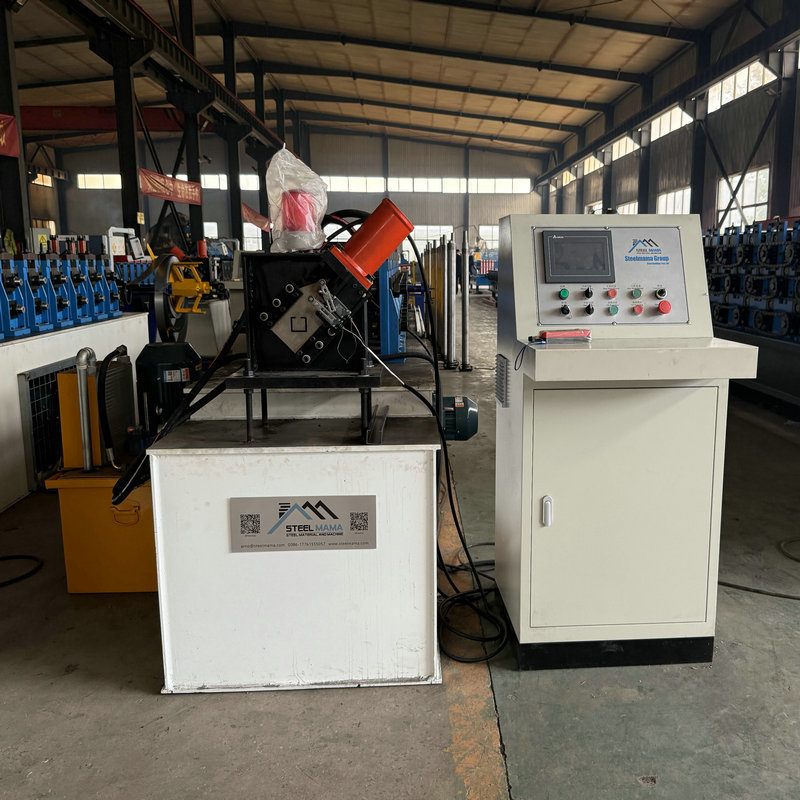

Hydraulic Cutting Device

  1. Cutting Type: Hydraulic cutting, roll forming part stop when cutting
  2. Hydraulic Motor Power:4KW
  3. Hydraulic Working Pressure: 12-16Mpa
  4. Material of Cutting Blade: Cr12 with heat treatment
  5. Length measuring: Automatic encoder(Omron Brand) length measuring
  6. Tolerance of Length: ±1.0mm

South Africa Cutomzied PLC Control Steel Profile Stud Cold Roll Forming Machine 2
