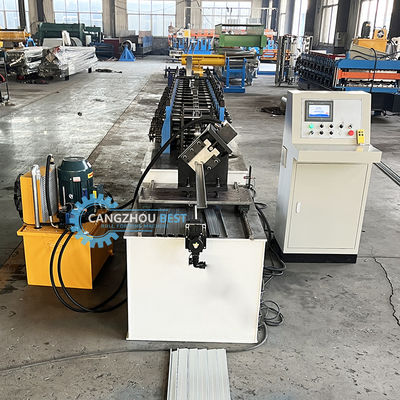

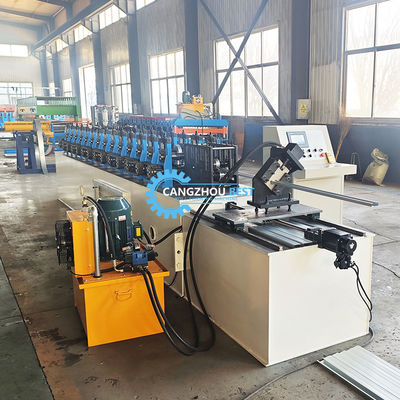

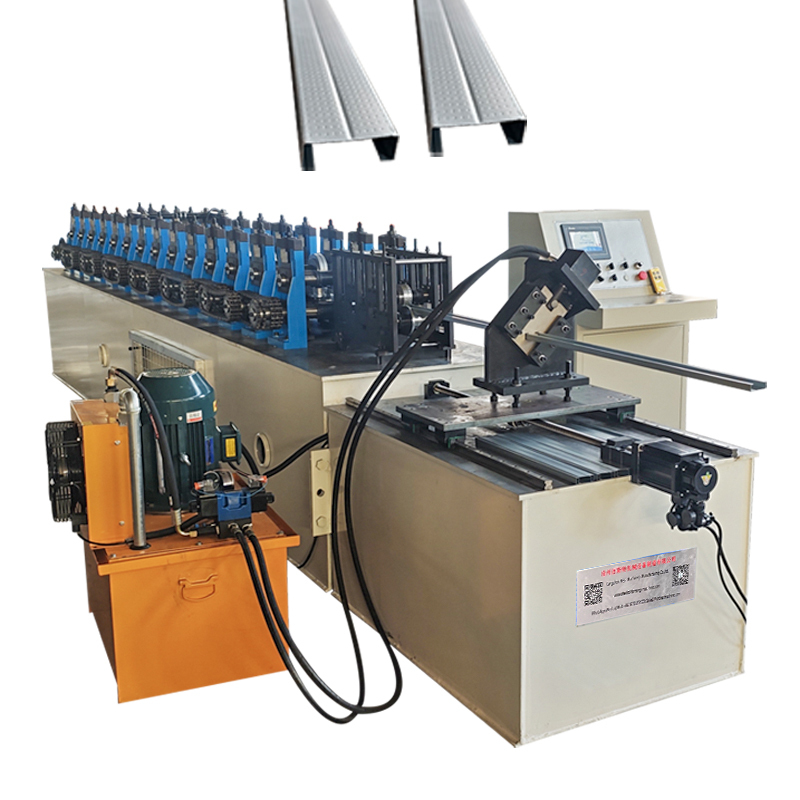

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine
High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

تصویر بزرگ :  High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

جزئیات محصول:
محل منبع: چین هبی
نام تجاری: CHBEST
گواهی: CE/BV/SGS
شماره مدل: XY50x24
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: 9500
جزئیات بسته بندی: فیلم پلاستیکی برای دستگاه برهنه
زمان تحویل: 30-40 روز
قابلیت ارائه: 20 مجموعه در ماه

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

شرح
نام محصول: گل میخ فلزی فلزی فلزی سبک و دستگاه شکل گیری رول آهنگ سیستم کنترل: PLC
نوع برش: اره پرنده ضمانت: 2 سال
طول عمر: 10 سال ماده غلتکی: Cr12 Mov
ماده شفت: 45#فولاد
برجسته کردن:

high-speed drywall metal stud machine,steel track roll forming machine,drywall profile roll forming machine

,

steel track roll forming machine

,

drywall profile roll forming machine

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine

Light steel keel, it is a kind of new building materials, with the development of modernization construction.light steel keel is widely used in hotel ,terminal building,car depot,station,Amusement Park,mall,factory,office building,old building renovation, indoor decoration set,ceiling ,etc.

Light steel keel is with the features of lightweight, highstrength, waterproof,shockproof, dustproof,soundproof,sound absorption,constant temperature;also with advantages of short limit time and easy installation.


Working flow


Decoiler------feeding------roll forming-------cut to length-----output table


Profile Drawing

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 0High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 1



Machine Components


Name Quantity(set)

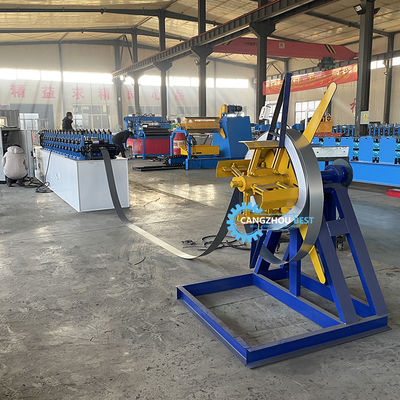

De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1


Parameter


Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T



Working conditions
1.Machine size 10m x 1.2m (L XW)
2.Working size 20m x 2.5m (LXW)
3.Power supply 8.5kw
4.Frequency 50-60HZ
5.Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8.Lift device 3-5t forklift or crane


High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 2

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 3

High-Speed ​​Drywall Metal Profile Steel Stud and Track Roll Forming Machine 4



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.


RFQ


Step 1: Tell us your requirements

Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative

Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.

Step 4: Advanced payment and production

Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.

Step 6: Balance payment and shipping

Step 7: Handing Shipping files to help clients get goods from transporter in time.

Step 8: Clients get goods and go into warranty time.
