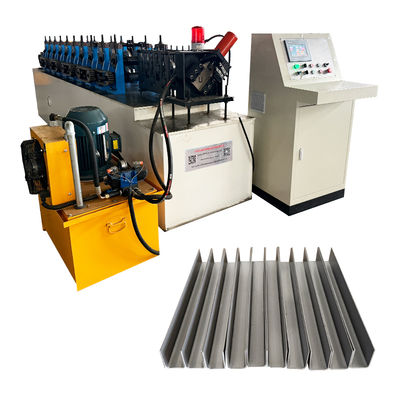

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

         Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

Work Flow

Decoiler------feeding------roll forming-------cut to length-----output table

Machine Component

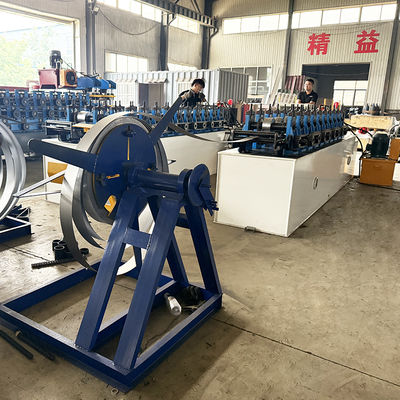

Decoiler

Max. Width: 500mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs

Type: Manual Or Hydraulic

Roll Forming Machine

Rolled Material: Cold Rolled Steel Sheet

Material Thickness: 0.8-1.2mm
Rollers: 10 Groups
Material for Rollers: Cr12 steel(quenching and Harding and chroming)

Frame panel thickness:casting frame

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: chain
Speed:10-15m/min

Diameter of shaft: 60mm

Material for shaft: 45# steel(quenching and Harding and chroming)
Hardness for Heat Treatment: HRC55 – 60

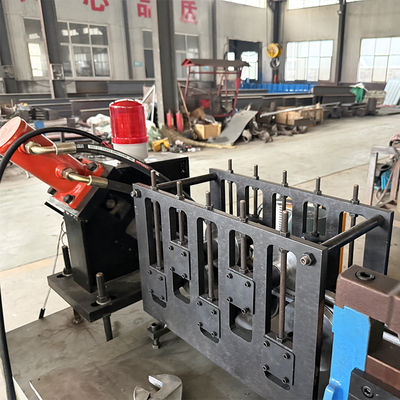

Cutting  Device

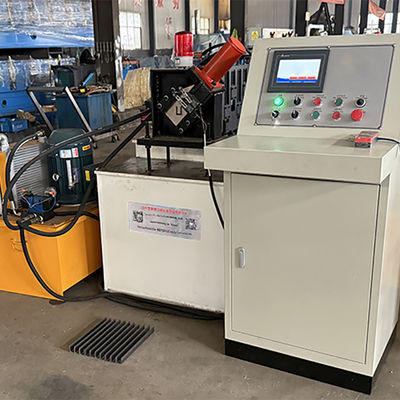

Control System

Hydraulic Pump

Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Our Service

Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
